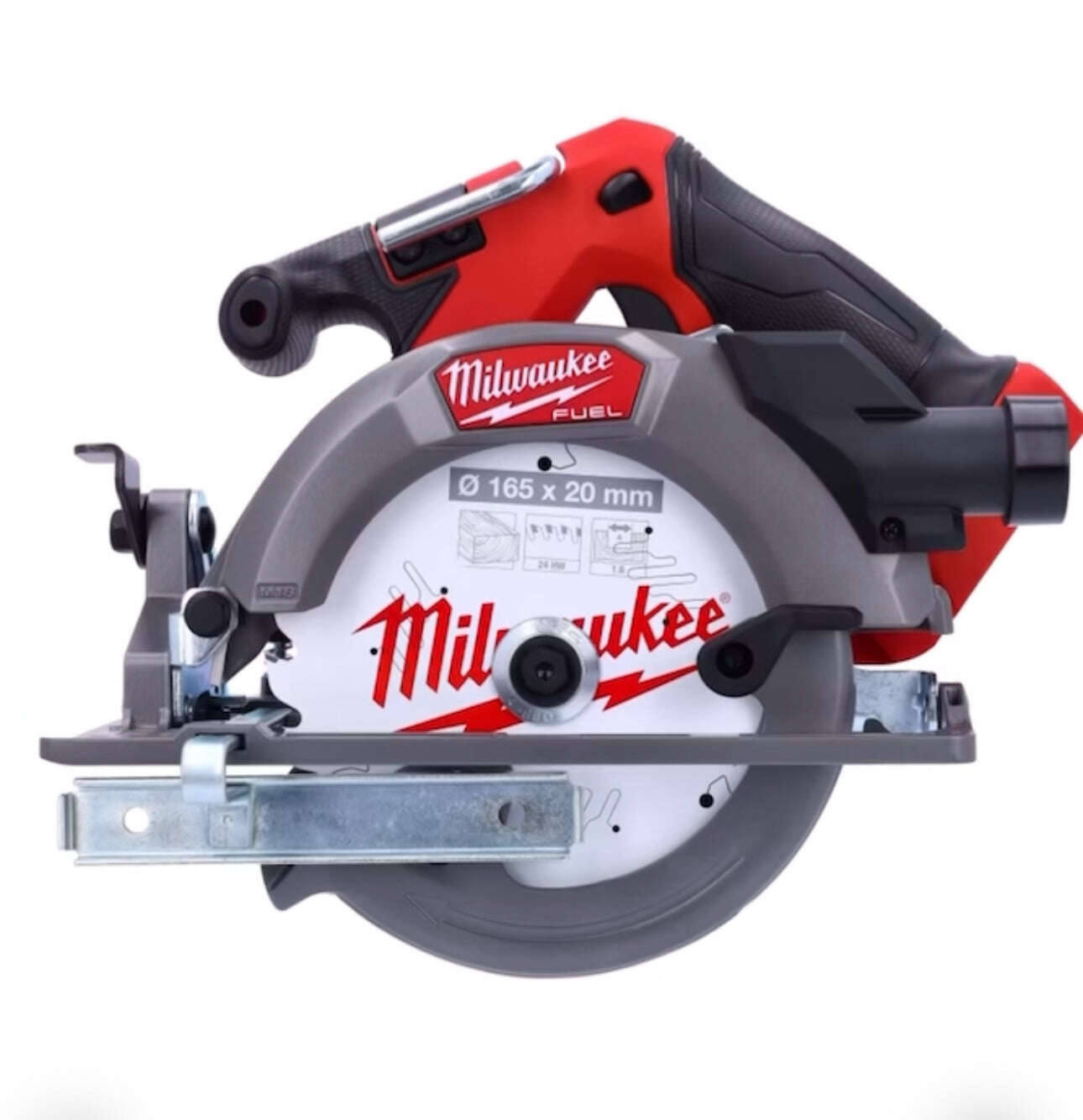

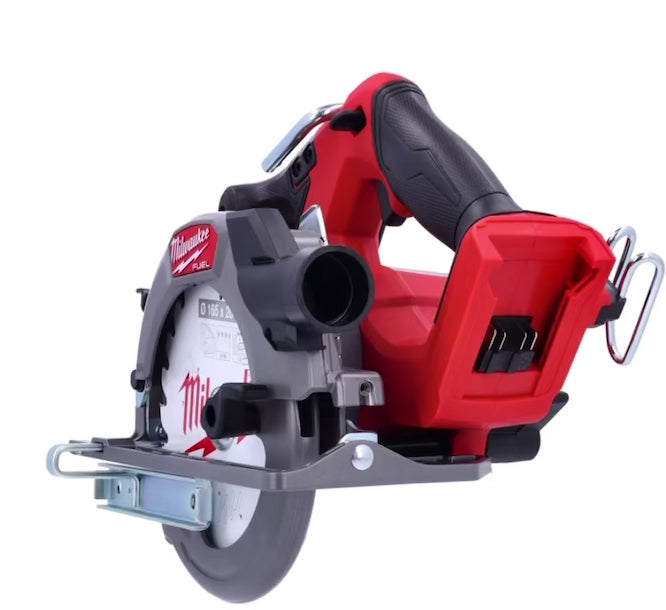

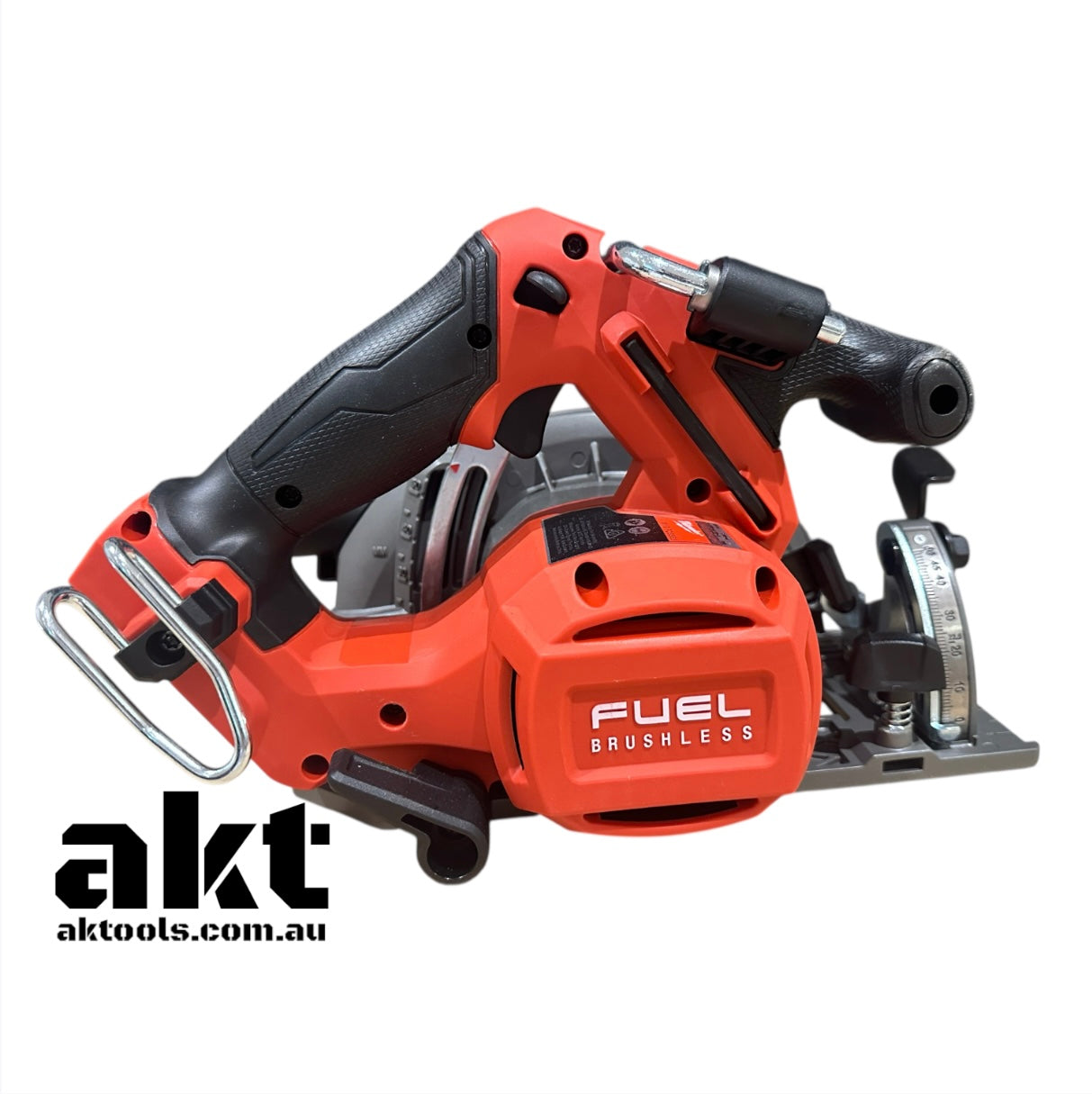

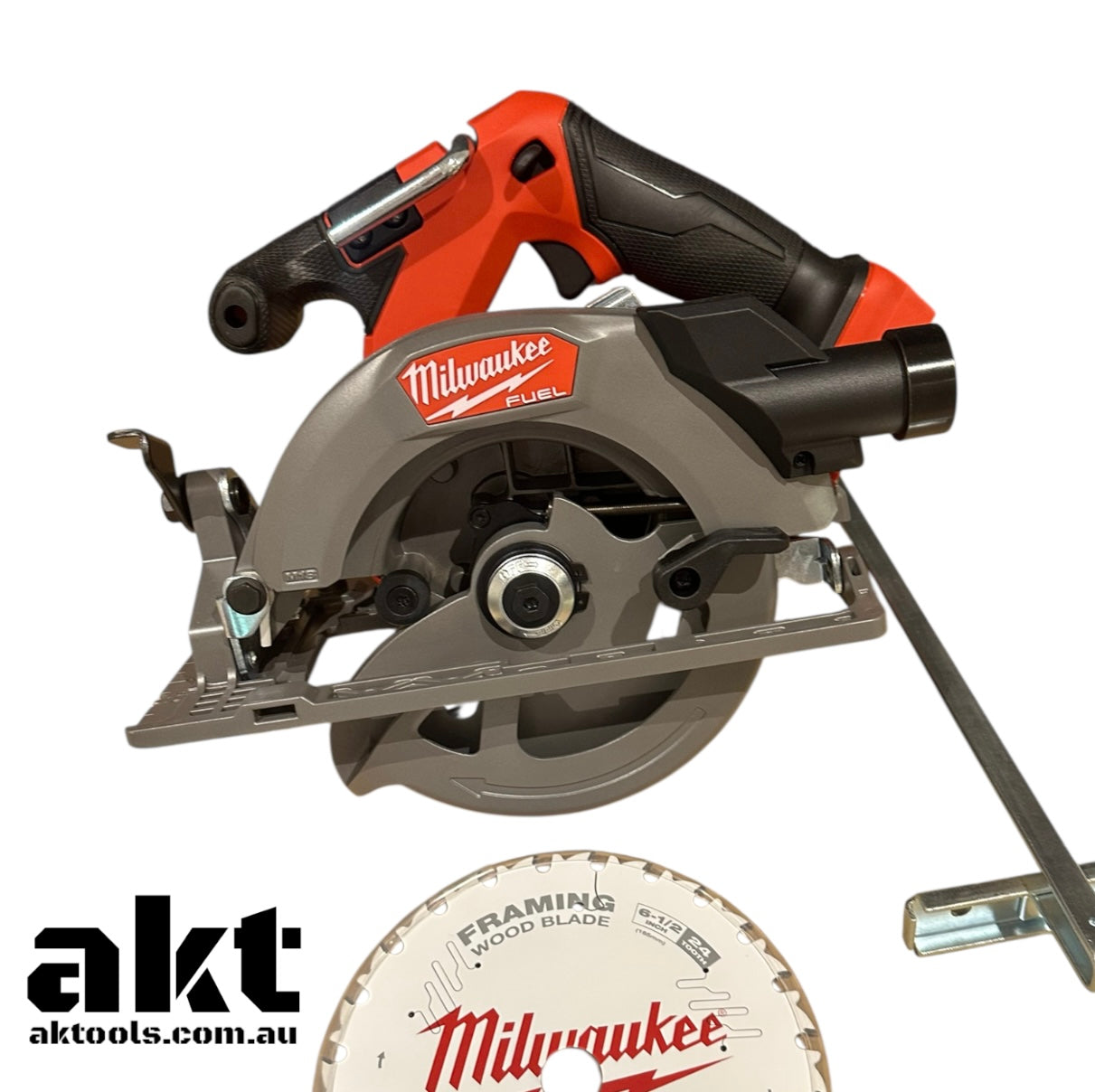

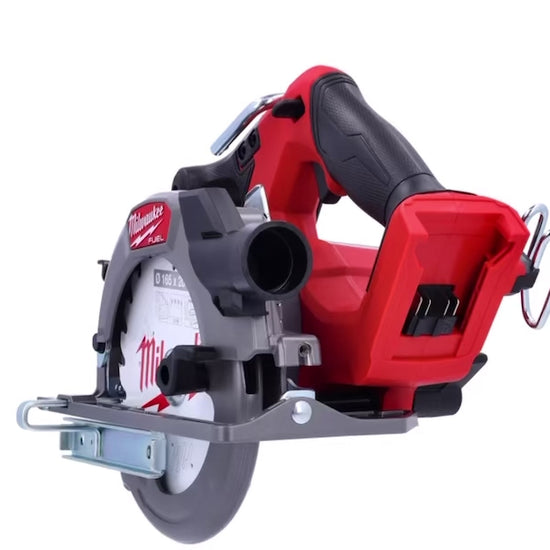

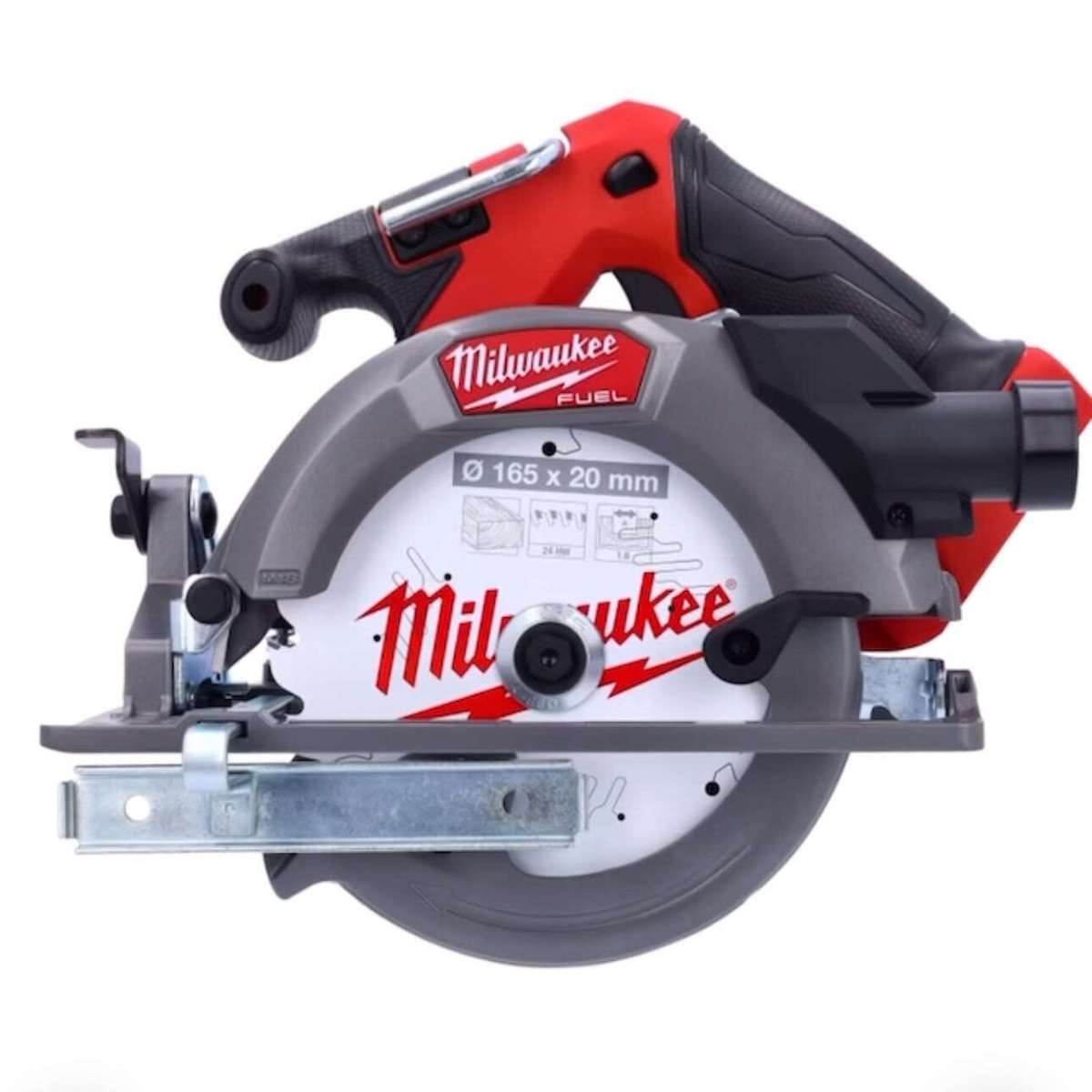

Milwaukee M18FCS552-0 165mm Circular Saw – Professional Cordless Cutting Power
The Milwaukee M18FCS552-0 is a second-generation M18 FUEL circular saw delivering professional-grade cutting performance through advanced brushless motor technology, REDLINK PLUS™ intelligence, and lightweight magnesium construction. Engineered for trade professionals requiring corded-equivalent power with cordless mobility across framing, carpentry, and construction applications.
Product Overview
Designed for professional tradespeople and serious users who demand reliable cutting performance on active jobsites. This GEN-2 circular saw combines Milwaukee's FUEL brushless technology with intelligent electronics to deliver extended runtime, superior power output, and enhanced durability. The 165mm blade capacity handles dimensional lumber, sheet goods, and engineered materials with precision, while the lightweight magnesium construction reduces operator fatigue during extended use.
Key Features & Specifications
- FUEL Brushless Motor — Advanced motor design provides superior efficiency, extended runtime, and up to 10x longer motor life versus brushed motors
- REDLINK PLUS™ Intelligence — Integrated electronics deliver optimized performance, overload protection, and thermal management for maximum tool life
- 165mm Blade Capacity — Professional cutting diameter with 57mm depth of cut at 90° for dimensional lumber and sheet materials
- 6,000 RPM No-Load Speed — High blade speed delivers fast, clean cuts through hardwoods, softwoods, and composite materials
- 0-50° Bevel Capacity — Wide bevel range with positive detents at 22.5° and 45° for quick, repeatable angle cuts
- Magnesium Construction — Lightweight yet durable magnesium shoe and guards reduce weight while maintaining jobsite durability
- Electric Brake — Stops blade rotation immediately after trigger release for enhanced operator safety
- Integrated LED Work Light — Illuminates cut line in low-light conditions for improved cutting accuracy
- Tool-Free Adjustments — Quick depth and bevel changes without additional tools for efficient workflow
- Dust Extraction Port — Integrated port with included vacuum adaptor for cleaner work environment
- 2.86kg Tool Weight — Lightweight design enables extended use with reduced operator fatigue
- M18 System Compatibility — Works with entire Milwaukee M18 REDLITHIUM battery platform of 250+ cordless tools
Technical Specifications
- Model Number: M18FCS552-0
- Voltage: 18V (M18 System)
- Motor Type: Brushless FUEL
- Blade Diameter: 165mm (6-1/2")
- Arbor Size: 20mm
- No-Load Speed: 6,000 RPM
- Maximum Cut Depth (90°): 57mm (2-1/4")
- Maximum Cut Depth (45°): 40mm (1-9/16")
- Bevel Capacity: 0-50° with detents at 22.5° and 45°
- Depth Detents: 1/2", 3/4", 1-1/2"
- Construction: Magnesium shoe and guards
- Tool Weight: 2.86kg (tool only)
- Dimensions: 305 x 178 x 195mm
- Battery Compatibility: All Milwaukee M18 REDLITHIUM batteries
Package Contents
- 1x M18FCS552-0 165mm circular saw (skin only)
- 1x vacuum dust adaptor
- 1x 165mm TCT blade (factory installed)
Note: Battery and charger sold separately. Compatible with all Milwaukee M18 REDLITHIUM batteries.
Compatibility
This circular saw is compatible with the complete Milwaukee M18 REDLITHIUM battery range including 2.0Ah, 4.0Ah, 5.0Ah, 8.0Ah HIGH OUTPUT, and 12.0Ah HIGH OUTPUT batteries. Higher capacity batteries provide extended runtime for demanding applications and all-day jobsite use.
Applications & Professional Uses
The M18FCS552-0 delivers professional cutting performance across multiple trade applications:
- Framing and residential construction — cutting studs, joists, rafters, and dimensional lumber
- Carpentry and joinery — breaking down sheet goods, plywood, MDF, and engineered materials
- Decking and outdoor projects — cutting treated timber, composite decking, and hardwood boards
- Renovation and remodeling — flooring installation, trim work, door jambs, and structural modifications
- Roofing applications — cutting roof sheathing, fascia, soffit, and roofing materials at height
- Formwork and concrete construction — cutting formwork timber on active building sites
- Workshop and furniture building — cabinetry, shelving, and precision woodworking projects
Performance Benefits
- Corded-Equivalent Power — FUEL brushless motor delivers power comparable to corded circular saws without cord limitations
- Extended Runtime — Efficient brushless design maximizes cuts per battery charge for increased productivity
- Jobsite Durability — Magnesium construction and REDLINK PLUS™ protection withstand harsh trade environments
- Reduced Fatigue — Lightweight 2.86kg design enables all-day use with minimal operator strain
- Enhanced Safety — Electric brake, LED lighting, and intelligent overload protection maximize operator control
- Fast Setup Changes — Tool-free bevel and depth adjustments with positive detents minimize downtime
- Platform Compatibility — Shares batteries with 250+ Milwaukee M18 tools for maximum versatility and value
✔ Genuine Milwaukee Australia product.
✔ Original product sourced from combo kits or bulk cartons, supplied without individual retail packaging.
