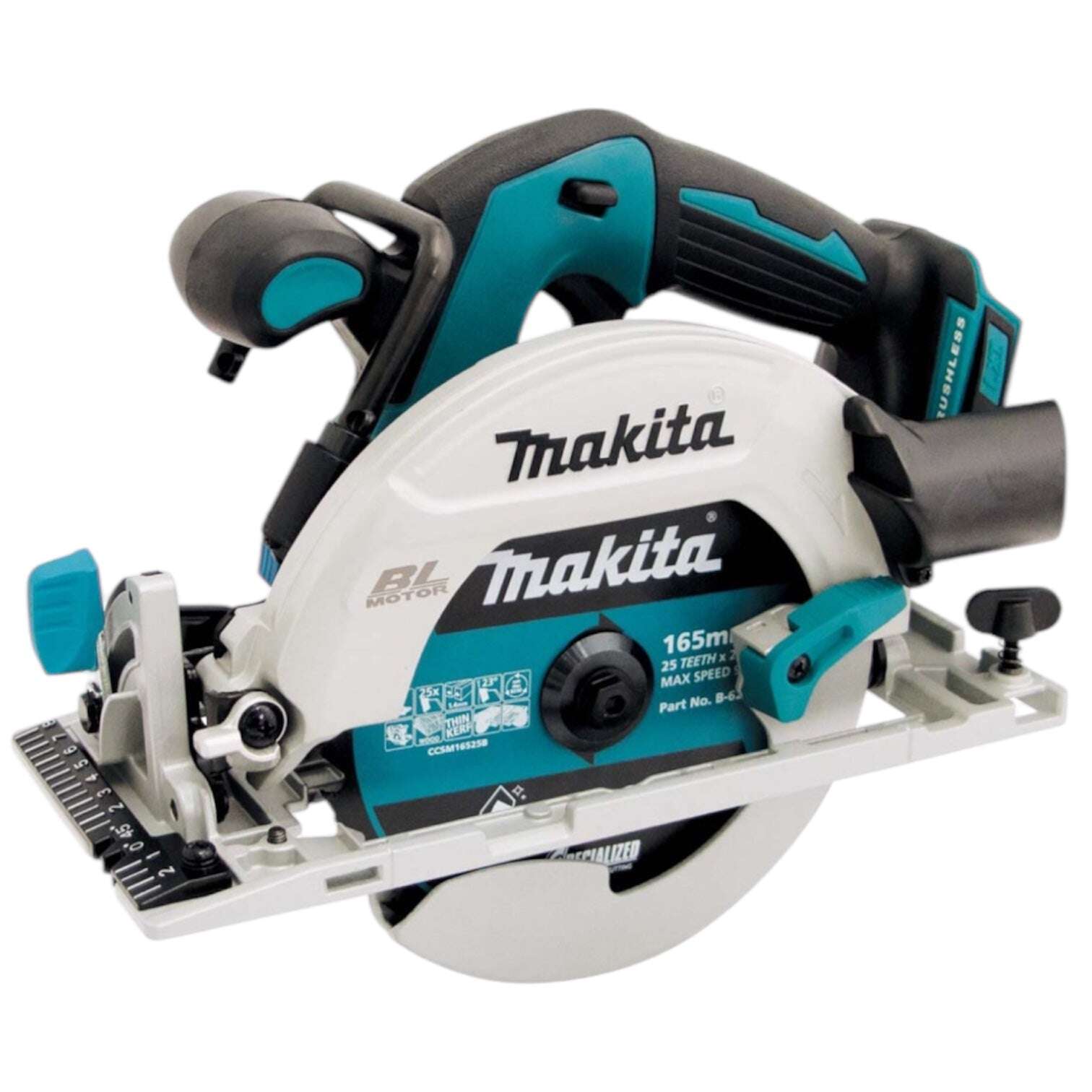

Makita DHS680Z 165mm Brushless Circular Saw – Professional 18V Cordless Cutting Power
Product Overview
The DHS680Z is engineered for trade professionals who need reliable cutting power, accuracy, and all‑day performance. With 5,000 rpm no‑load speed, 57mm cutting depth at 90°, and intelligent torque adjustment during operation, this saw delivers clean, controlled cuts while reducing operator fatigue. Its electric brake system, LED job light, and dust blower ensure safety, visibility, and precision on fast‑paced job sites.
Key Features & Specifications
- Brushless Motor Technology — Superior motor construction delivers more cuts per charge and extended tool life compared to standard brushed motors.
- Automatic Torque Drive Technology — Intelligent system adjusts cutting speed and torque during operation for optimal performance.
- High‑Speed Performance — 5,000 rpm no‑load speed provides smooth, controlled cutting through various materials.
- 165mm Blade Capacity — Professional‑grade cutting depth of 57mm at 90° and 38mm at 45° for versatile applications.
- Electric Brake System — Rapid blade stopping for enhanced safety and reduced downtime between cuts.
- Advanced Dust Blower — Built‑in air jet clears cutting line for improved visibility and accuracy.
- LED Job Light — Integrated illumination for improved visibility in low‑light conditions.
- Flexible Bevel Capacity — 0‑50° bevel cutting range with positive stops for precise angled cuts.
- Ergonomic Design — Rubberized soft grip handle reduces fatigue during extended use.
- Lightweight Construction — Only 2.7kg (skin only) for reduced operator fatigue and enhanced maneuverability.
- Universal LXT Compatibility — Works with entire Makita 18V LXT battery platform of 300+ cordless tools.
Applications & Professional Uses
This brushless circular saw is ideal for professional cutting applications including:
- Timber Framing — Studs, joists, rafters, structural timber cutting.
- Sheet Materials — Plywood, MDF, particle board, composite panels.
- Decking Projects — Deck boards, fascia, outdoor timber applications.
- Trim Carpentry — Skirting, architraves, finishing work.
- Renovation Work — Cutting existing materials and modification projects.
- Furniture Making — Precision cuts for custom joinery and cabinetry.
- General Construction — Cross‑cutting, rip‑cutting, bevel applications.
- Trade Professions — Carpentry, construction, renovation, cabinet making.
Performance Benefits
- Professional‑Grade Technology — Brushless motor engineering delivers superior runtime, power, and tool longevity.
- Maximum Productivity — Extended runtime and rapid electric brake minimize downtime for continuous workflow.
- Superior Cutting Control — Automatic Torque Drive adjusts performance based on material resistance for consistent results.
- Enhanced Accuracy — Dust blower and LED light combination ensures precise cutting line visibility.
- Operator Comfort — Lightweight design and ergonomic grip reduce fatigue during all‑day use.
- Versatile Performance — 0‑50° bevel capacity handles diverse cutting angles and applications.
- Platform Efficiency — Fully compatible with all Makita 18V LXT batteries and chargers for seamless integration.
Technical Specifications
- Model: DHS680Z
- Voltage: 18V Li‑Ion
- Motor Type: Brushless
- No‑Load Speed: 5,000 rpm
- Blade Diameter: 165mm
- Arbor Size: 20mm
- Max Cutting Depth (90°): 57mm
- Max Cutting Depth (45°): 38mm
- Bevel Capacity: 0‑50° (left)
- Weight: 2.7kg (skin only)
- Dimensions: 350mm length
- Battery Compatibility: All Makita 18V LXT batteries
- Barcode: 0088381683197
Package Contents
- 1 × DHS680Z Circular Saw Body
- 1 × 165mm TCT Saw Blade
- 1 × Rip Fence
- 1 × Hex Wrench
- 1 × Dust Extraction Nozzle
Note: Battery and charger sold separately. Compatible with all Makita 18V LXT batteries.
✔ Genuine Makita Australia product.
