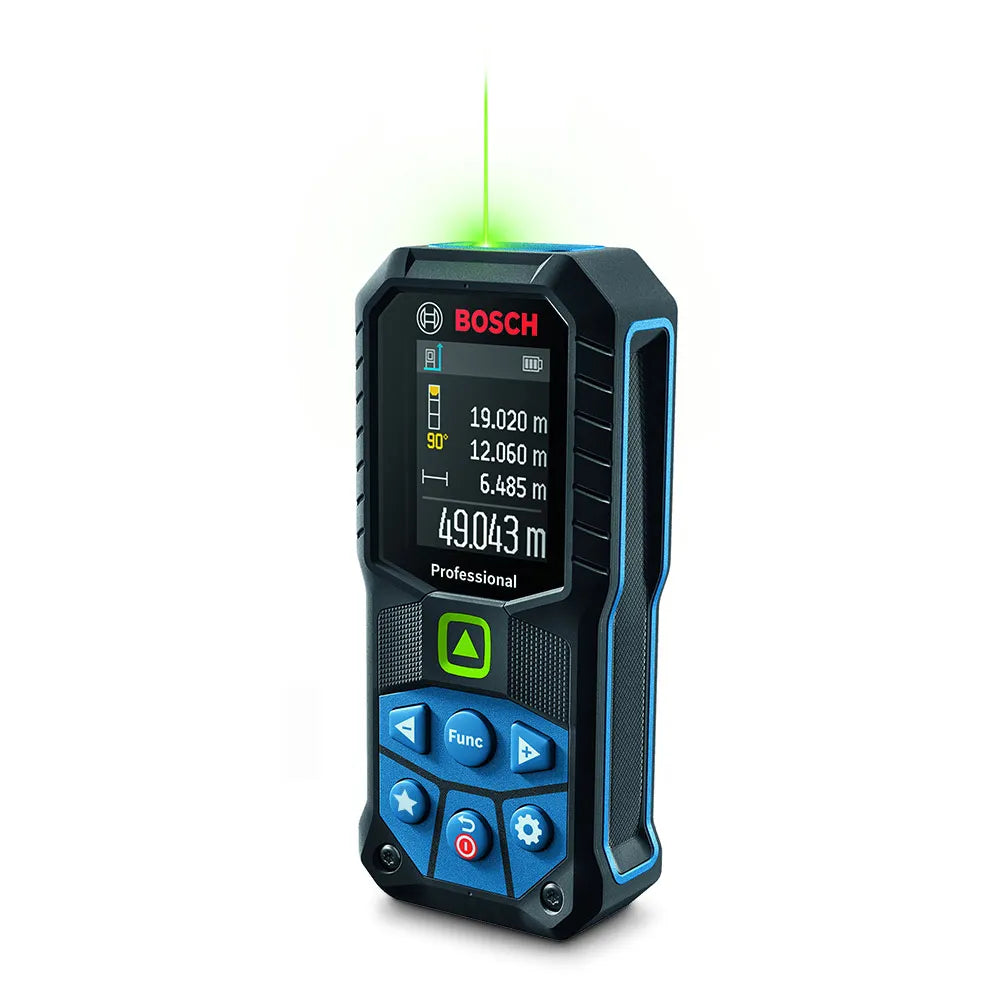

BOSCH 50m Green Beam Laser Distance Measurer GLM 50-23G – Professional Accuracy for Every Trade
Product Overview
The Bosch GLM 50-23 G Professional laser distance measurer delivers precision measurement with a bright green beam laser for excellent visibility in bright indoor conditions. Covering a range of up to 50 metres with ±1.5 mm typical accuracy, it handles length, area, volume, indirect height, and incline measurements with ease. Whether you're working in electrical, tiling, carpentry, drywall, painting, or HVAC, the GLM 50-23 G keeps your measurements fast, accurate, and reliable.
Key Features & Specifications
- Green Beam Laser — 515 nm green diode laser for superior visibility in bright indoor conditions compared to red beam alternatives.
- Precision Measurement — ±1.5 mm typical accuracy across a 0.05–50 m range with response time under 0.5 seconds.
- Multiple Measurement Modes — Length, area, volume, indirect height, double indirect height, indirect length, stake out, and incline level.
- 360° Tilt Sensor — Built-in incline sensor for easy angle measurement and levelling applications.
- Tape Measure Visualisation & Big Numbers — Min/Max continuous measurements with easy-to-read colour display.
- Built-In Memory — Automatically stores the last 30 measured values and one constant for convenient recall on the job.
- IP 65 Protection — Fully dust tight and highly water resistant for tough site conditions.
- 1.5m Drop Resistance — Reinforced rubber housing withstands drops from up to 1.5 metres for reliable durability on the job site.
- Tripod Compatible — 1/4" tripod thread for stable, hands-free measurements.
Applications & Professional Uses
The GLM 50-23 G is ideal for a wide range of trade and installation applications including:
- Electrical Work — Cable runs, conduit routing, switchboard spacing.
- Tiling & Flooring — Room area calculations, layout planning.
- Carpentry & Joinery — Timber lengths, room dimensions, fit-out measurements.
- Drywall & Plastering — Wall and ceiling area calculations for material estimates.
- Painting & Decorating — Surface area measurements for paint quantity planning.
- HVAC Installation — Duct runs, equipment spacing, room volume calculations.
- Indoor Installations — General fit-out, renovation, and construction measurements in bright conditions.
Performance Benefits
- Fast & Accurate — Sub-0.5 second response time keeps your workflow moving without delays.
- Green Laser Advantage — Easier to spot in well-lit environments where red lasers can be hard to see.
- Built for Job Sites — IP 65 and 1.5m drop resistance means it handles real-world conditions.
- Multi-Function — Replaces tape measures and calculators with one smart tool.
- Easy to Use — Simple operation with clear colour display for fast readings.
Technical Specifications
- Measuring range: 0.05 – 50 m
- Measuring accuracy (typical): ± 1.5 mm
- Laser diode: 515 nm, < 1 mW
- Laser class: 2
- Laser colour: Green
- Measurement time (typical): < 0.5 s
- Measurement time (max): 4 s
- Incline measurement range: 0 – 360° (4 × 90°)
- Incline measuring accuracy (typical): ± 0.2°
- Dust and water protection: IP 65
- Drop resistance: 1.5 m
- Power supply: 2 × 1.5 V LR6 (AA)
- Automatic switch off: 5 min
- Units of measurement: m/cm, ft/inch
- Memory capacity (values): 30
- Tripod thread: 1/4"
- Weight (approx.): 0.2 kg
Package Contents

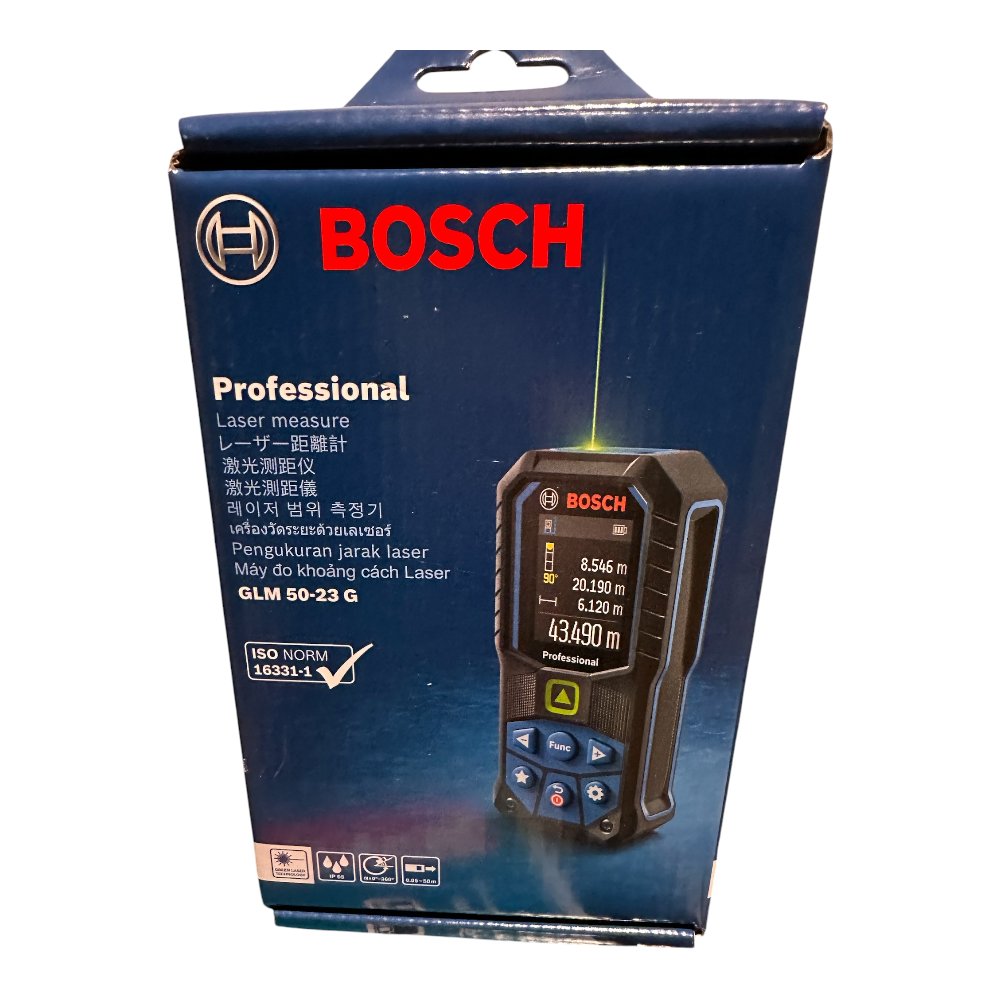

- 1 × Bosch GLM 50-23 G Laser Distance Measurer
Note: The retail packaging does not state that batteries are included. Pouch and tripod are sold separately and are not included with the Bosch GLM 50‑23 G.
✔ Compatible with Bosch Professional (Blue) only. Not compatible with Bosch Green (DIY).
✔ Genuine Bosch Professional Australia product.
